Proxmox Virtual Environment and Clustering with ZFS and Ceph - Introductory Course Notes

Introduction

Basics

• Debian stable + Ubuntu Kernel
• Virtualization with KVM
• LXC Containers
• Supports ZFS and Ceph

Features

• Snapshots
• KVM Virtual Machines (Windows, Linux, BSD)
• LXC Containers
• High Availability (HA) Clustering
• Live Migration
• Flexible Storage Options
• GUI Management
• Proxmox Data Center Manager
• Proxmox Backup Server

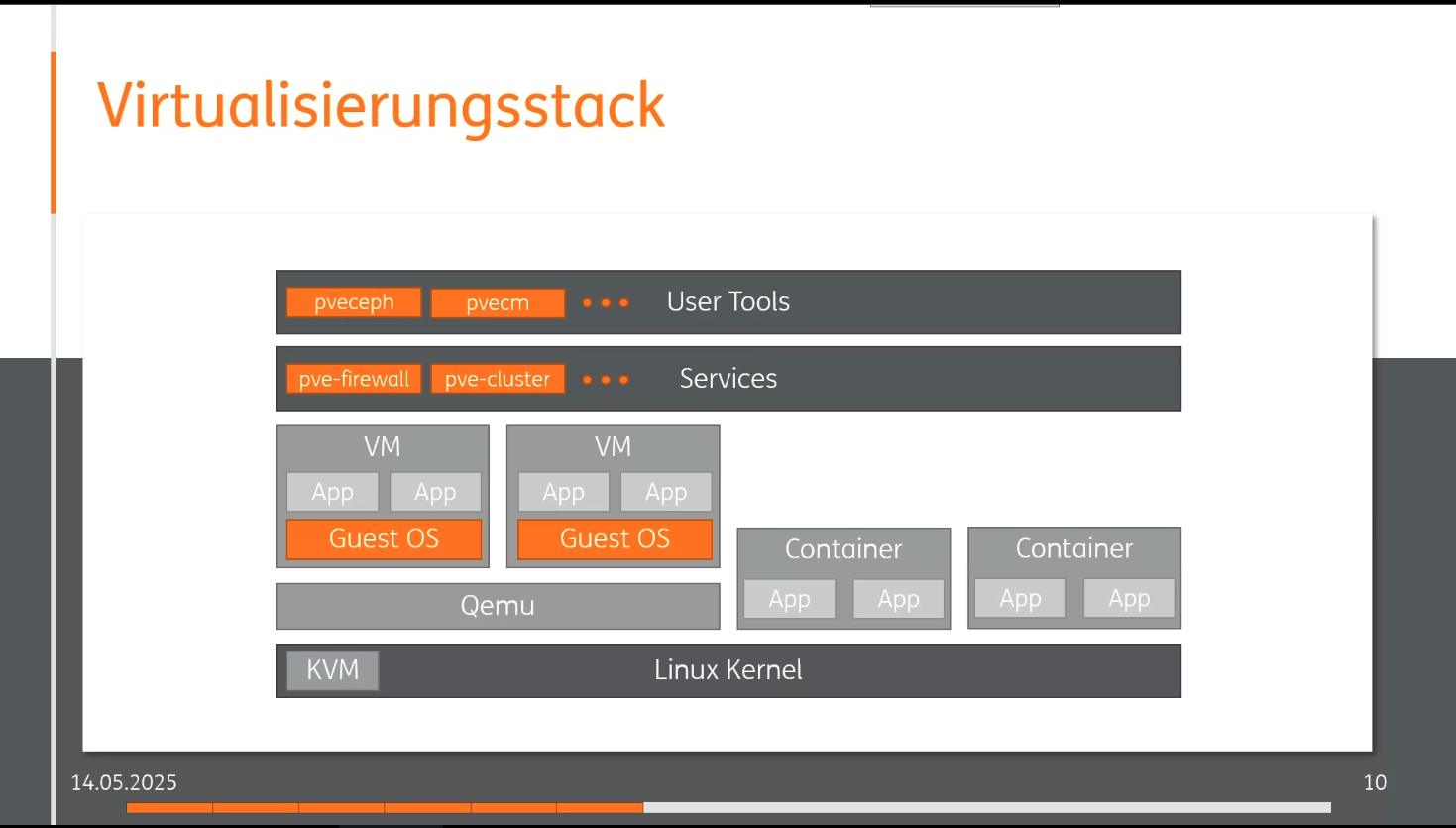

Virtualization Stack

Expansion Options

Single Node

• Storage Pool:
  • RAID Controller with LVM – Ceph and ZFS don’t support a RAID controller; if a RAID controller is used, change to the mode and use ZFS.

Clustering Without HA

• Several Storage Pools
• Pools are not shared – individual

ZFS Cluster with Asynchronous Replication

• At least two pools
• A quorum device between them replicates the configuration between the nodes.

Ceph Cluster

• At least 3 nodes
• Pool is combined and shared

Installation

• It's possible to provide custom TOML files to install Proxmox automatically.
• ZFS RAID1 for the boot drive.
• Define the correct hostname; it's not easy to change later.
• Modify the update repositories as a first step! And update/upgrade the system.
• Hardware: Always better to have as many interface ports as possible.
  • 2x 1 Gbit for Management
  • 2x 10 Gbit for VMs (redundant, bonded via LACP – requires stacked switches or backup mode)
  • 2x 25 Gbit for Ceph storage clustering
  • Single node: at least 4 ports; for clustering: at least 6 ports.
• Remove the IP address of the virtual bridge and set it directly on the physical interface. This prevents VMs from seeing the Proxmox IP.
• Bond ports for VMs (ideally two 10 Gbit ports) and set the virtual bridge on bond0 so it can be used by VMs (set 'VLAN aware' at the bridge).
• It’s possible to create a bond for the web UI port.

VM Creation

Todo

• Join the forum
• Research about initial TOML file for Proxmox for unattended configuration of PVE - 'proxmox autoinstaller'
• Test ZRAID1 on two SSDs at home with a 'turtle' Proxmox host

Support Subscriptions

Basic

1 CPU per year / 2 CPUs per year

• Access to enterprise repositories
• Stable software updates
• Support via the customer portal
• Three support tickets
• Response time: 1 business day

Standard

1 CPU per year / 2 CPUs per year

• All Basic features

Additionally:

• 7 support tickets (total 10)
• Remote support (via SSH)
• Offline subscription key activation

Premium

1 CPU per year / 2 CPUs per year

• All Standard features

Q&A

• full mesh network for ceph server (directly cable 3 hosts without switches)
• official nvidia support vor vGPUs in proxmox
• virtual tpm can not be saved on nfs share
• one can couple an esxi host in the proxmox ui and directly import VMs from there
